Capiscope invivo capillary velocity validation using various capillary video images

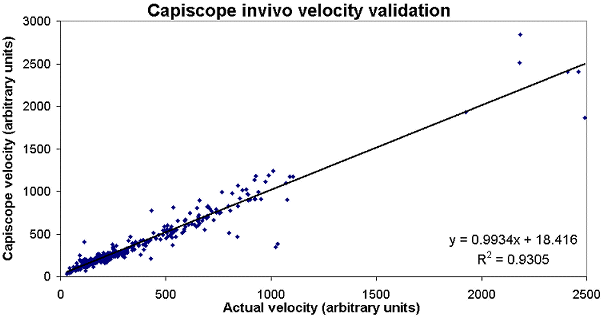

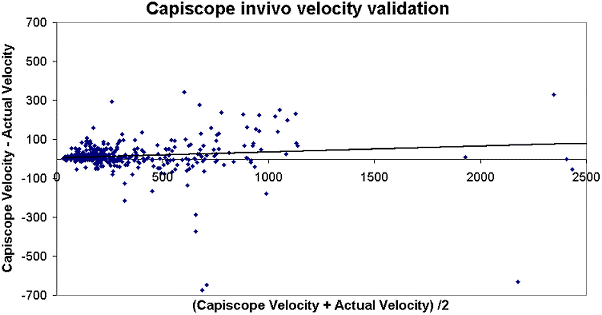

Comparing spot measurements of CapiScope velocity with correspondong frame by frame measurements

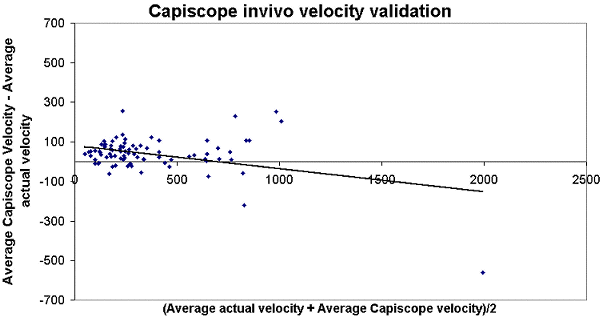

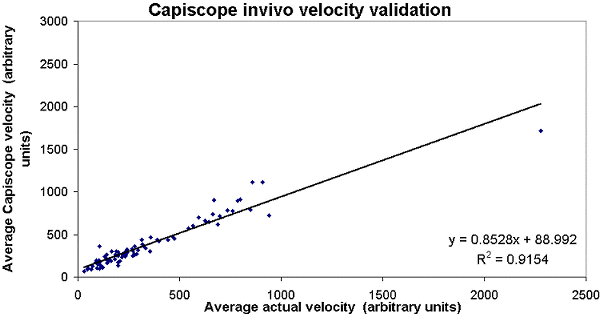

Comparing whole sequence average of CapiScope velocity measurement to average of one or more frame by frame measurements

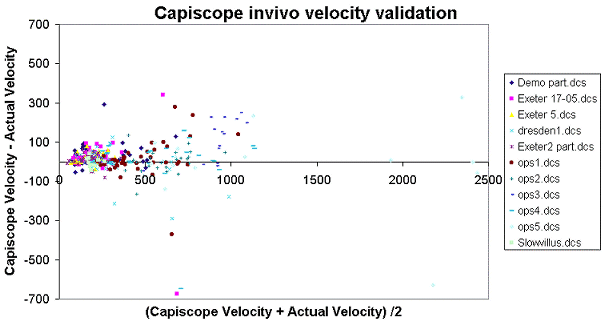

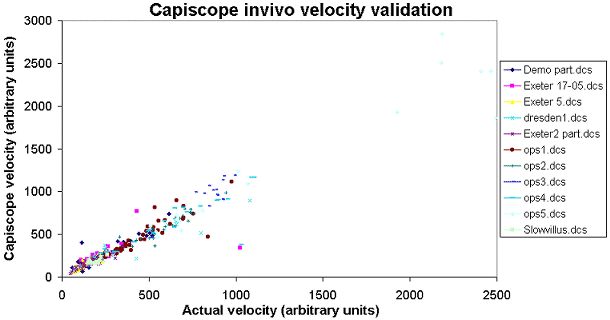

Comparing spot measurements of CapiScope velocity with correspondong frame by frame measurements identified by video source

Comparing spot measurements of CapiScope velocity with correspondong frame by frame measurements

Comparing whole sequence average of CapiScope velocity measurement to average of one or more frame by frame measurements

Comparing spot measurements of CapiScope velocity with correspondong frame by frame measurements identified by video source


Back to top

Frame by frame

Measured by measuring the slope of patterns in the grey level along the vessel against time.
